Electrical
|
|
Parts sorted alphabetically
12v | Accessories |
Harness |
Headlight | Ignition |
Reference |
Switches
|
|
Photo |
Description |
See
Link/Price |
|
 |
Fuse Box Assembly - KZ900 |
Chassis Electrical |
| |

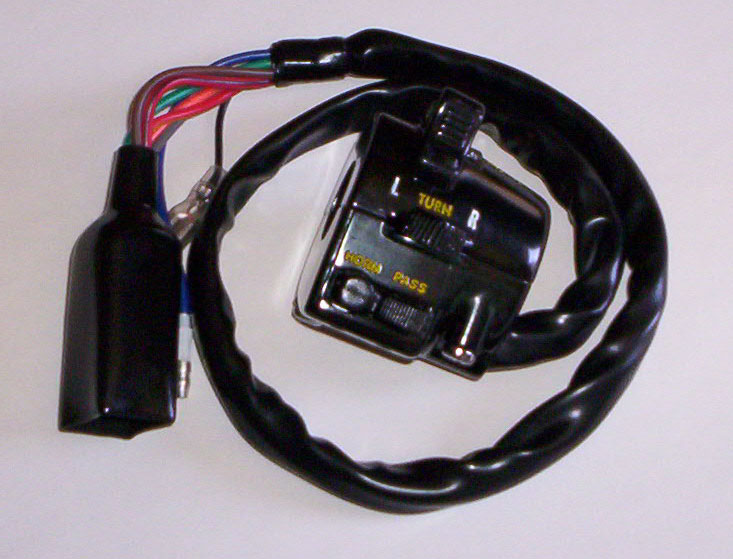

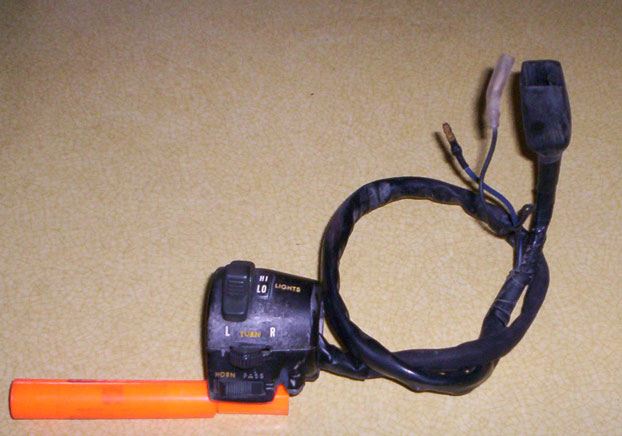

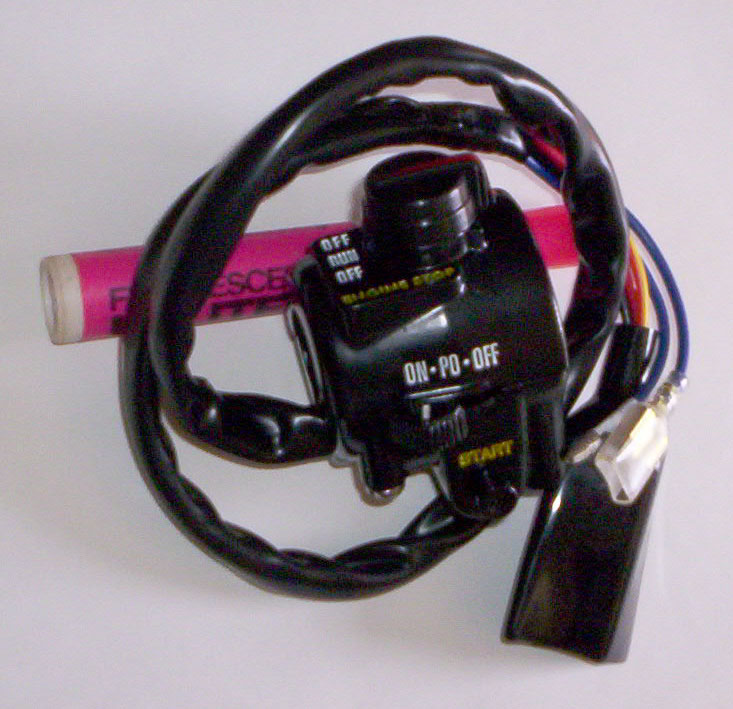

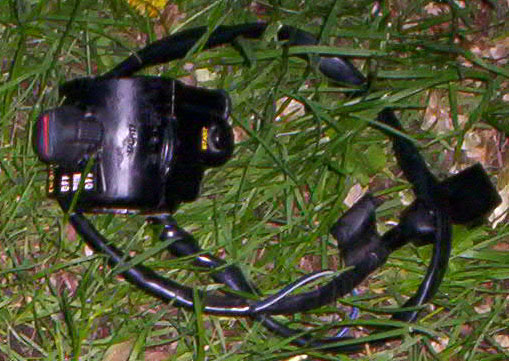

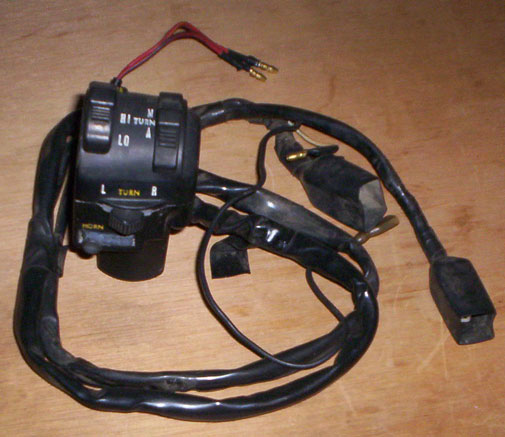

Handlebar Switch |
Handlebar |
|
|
Headlight kits
H4 or Halogen Sealed-Beam or Stock Sealed-Beam kits available. |
Headlight
|
|
|
Headlight Assembly, Chrome
7 inch for Kawasaki
|
Headlight
|
| |
Headlight Holders, Kawasaki Chrome 73-75 Z1, 76-77 KZ900 A, 77-80 KZ1000 A.
COVER, LH FORK. Not for LTD models. |
Front Fork
|
|
|

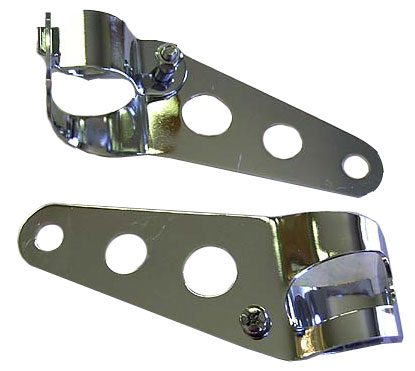

Headlight Holders, Chrome
Will fit any motorcycle forks between 20mm - 42mm. Up & down adjustment at headlight
mounts. Great alternative compared to stock headlight holders. Also see
Turn Signal Stems.
|
$18.99
|
|
Go here for Ignition Parts. Coils, Dyna
S, Spark Plug Cap, Plug Wire Set, Breaker Points
|
|
|

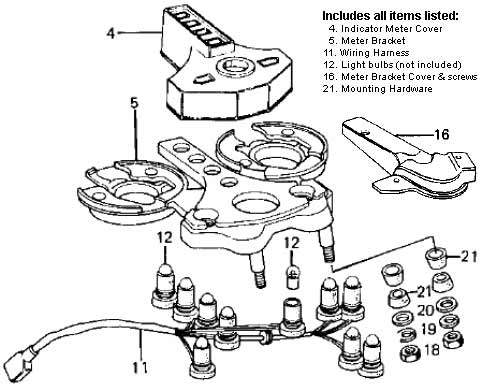

Meter (Guages) & Bracket parts,
see Meters for speedometers,
tachometers, bracket, harness, bulbs |
|
|
Rear Brake Light Switch
Also see Chassis Fits: KZ1000 KZ900 KZ650 KZ550.
Replaces 27010-017. |
$28.99 |
| |
Rear Brake Light Switch, Universal
Fits most vintage motorcycles. |
$17.99 |
| |
Rectifier
Replaces 99996-1159 |
See Ignition |
| |
Rectifier/Regulator Combination Unit - KZ900 KZ1000 |
See Ignition |
|
|
Reflectors, Red
About 1" or 20mm in diameter. Includes reflector, spring & wing nut as shown. Fits
great on license plate frames. |
$1.49 each |
|
|
Flashing Red Spark Plug Cap
The kit is for all Kawasaki 4 cylinder models. Flashing spark plug cap with rubber boots as shown. These caps are at a 120°angle.
1973-80 Z1, KZ900, KZ1000 and any KZ models that have 4 cylinders. Replaces the
spark plug cap on virtually any car, motorcycle or any engine that has a spark plug. Looks awesome day or night. Enables
you to see if your spark plugs are getting juice since they light up every time
your coil sends voltage to the spark plug. Easy to install. Unscrew or cut your
old caps off and screw in the new ones. Spark Plug Caps fit 10mm, 12mm and 14mm spark
plugs and accept 7mm or 8mm plug wires. These caps are no longer available. Your local
motorcycle shop should have them. Also come in colors of blue and amber. |
N/A |
|
|
Spark Plug Cap, NGK
Fits all bikes, screws onto plug wire, 120 degree angle. |
$9.99 each |
|
|

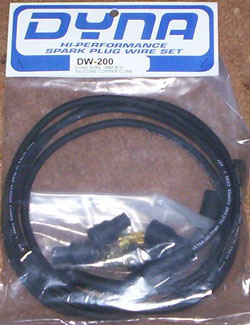

Spark Plug Wires & Plug Caps
DYNA Ignition Wires - 7mm copper core (black) fits any motorcycle up to four cylinders.
Z1 KZ900 KZ1000. |
See
Ignition |
|
|
Starter Relay
KZ400 KZ650 KZ900 KZ1000 up to 1980. |
See Ignition
replaces 27010-1023 |
|
|
Stator Assembly - see
Generator |
|
23026-034
|
Tail Light Lens
1977-98 KZ1000 all models
1976-77 KZ900 all models
1976-83 KZ750 G1 & H models
1977-79 KZ650 B1 B2 B3 C1 C2 C3 D1 D2
1980-83 KZ650 E1 F1 H1 H2 H3
1980-83 KZ550 A1 A2 A2 A3 A4 C1 C2 C3 C4 D1
1980-83 KZ440 A1 A2 A3 A4 D1 D2 D3 D4 D5 G1
1979 KZ400 H1
1978-79 KZ200 A1 A2 |
$14.99 Tail-Light |
|
|
Tail Light Lens, Kawasaki
23026-023
1973-75 Z1
1972-75 S1 S2 S3
1976-78 KH400 A3-A5
1972-75 H2 750 |
$14.99 |
|
Turn Signal Assemblies for Z1, KZ900 & KZ1000
See Turn Signals, Lenses & Parts
|
|
|

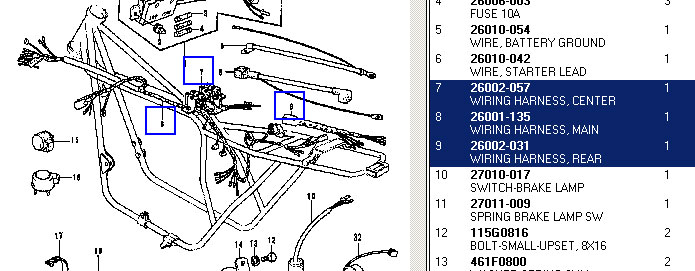

Wiring Harness Set for Z1
$299.99
1973-75 Z1 (photo).
KZ900?
4-piece main wiring harness set consists of the:
1)
main harness,
1)
center harness (behind electrical panel),
1)
tail harness
1)
instrument harness
A great replacement harness and for restorations. The connector blocks have
an additional snap connector to keep the blocks firmly connected. The new connector
blocks work with original Kawasaki connector blocks. Will
also work with KZ900 (76-77) models but does not include the hazard lights wiring
connector. Set not sold separately.
|
|
|
Wiring Harness Set for KZ900
$299.99
Same as above except is specifically for the 1976-77 KZ900 A4/A5 models.
(photo).
Includes
1pc main wiring harness. |
|
12 Volt
Accessories
|
|

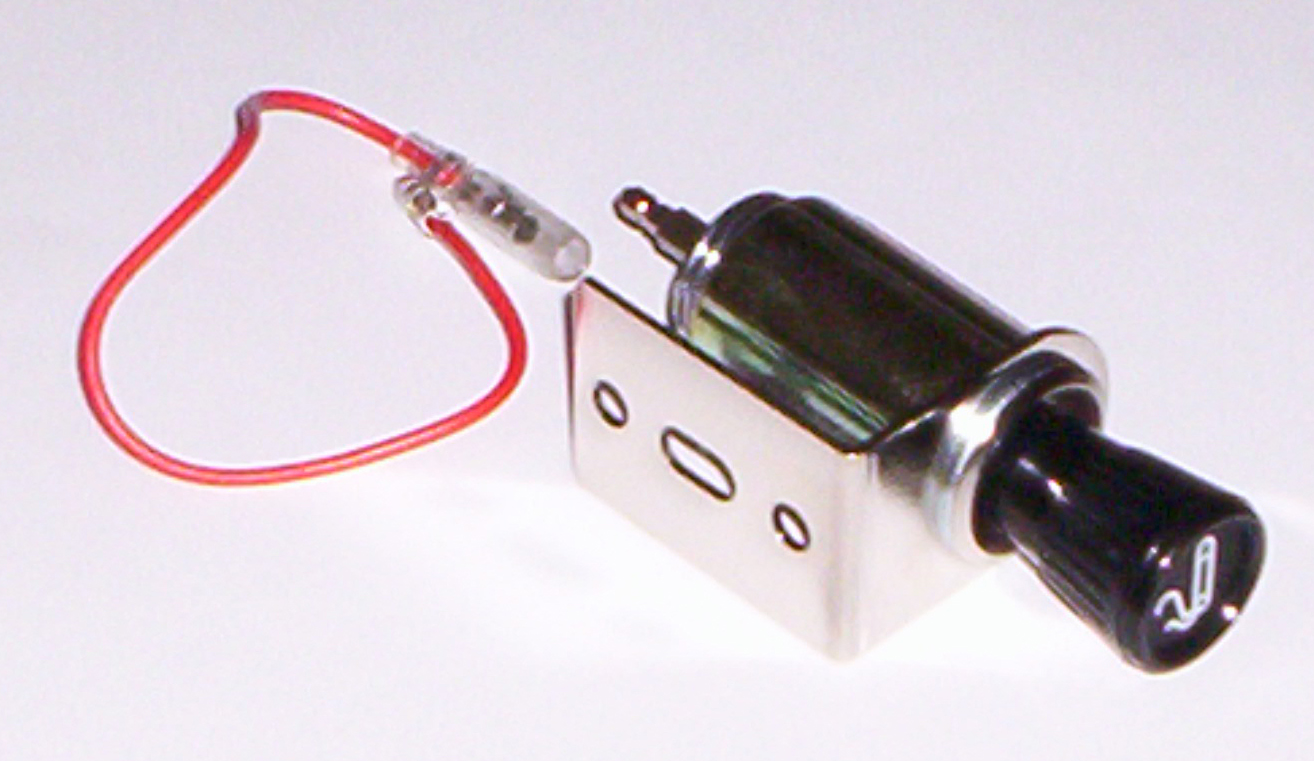

12v Cigarette Lighter See Vetter
Accessories
Comes with mounting bracket and mounts almost anywhere. Can also be used
as a 12 volt power accessory or remove the chrome mounting bracket and install it
into your Vetter fairing.
|
|
Miscellaneous
Resources
|
DYNA-S Electronic Ignition
Installation Instructions
(PDF file) for KZ900 KZ1000 & KZ650 models. Dyna S, model DS2-1
& DS2-2. |
Vetter Windjammer Fairing Electrical Wiring
Schematic
Electrical schematic, color codes and tips for installing/repairing
(Windjammer III, IV, SS) fairings on your bike. |
|
Vetter Windjammer Windshield SNAP VENTS
installation (QuickTime Movie)
|
