Meters / Ignition Switch

Parts for 1976-77 Kawasaki KZ900 A4 / A5

Back to Contents

Kits | & | Used
See parts list below
Ref OEM Part Name Req

Each
1 25005-1031 Speedometer Assembly, 0-160 MPH 1 Kits
1 25006-056 Speedometer, KPH (Canada) Canada 1 N/A
2 25015-1010 Tachometer Assembly 1 Kits
3 27007-004 Nut, Ignition Switch Lock 1 N/A
4 25023-015 Cover, Meter, Indicator 1 N/A
4 25023-011 Instrument Panel Cover, Meter, Indicator (for 1974-75 Kawasaki Z1 A/B models 1
5 1976 Kawasaki KZ900 Speedometer/Tach Meter Bracket
25008-045		 Bracket, Meter KZ900 (25008-1005) 1 Kits
5 25008-025
25008-036
25008-044		 Bracket, Meter for 1973-75 Kawasaki Z1 models 25008-044 $47.99
6 92027-211 Collar, Meter 4 N/A
7 92075-172 Rubber, Meter 4 N/A
8 92022-241 Washer, Plain, 5mm 4 Hardware
9 461F0500 Washer Spring 5mm 4 Hardware
10 312B0500 Nut 5mm 4 Hardware
11 25011-049 Socket, Speedometer See Main Wiring Harness 1 N/A
12 92069-018 Bulb 12v 3w 10

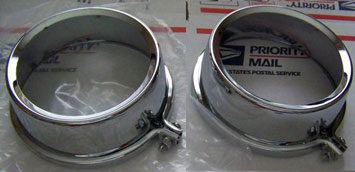

13 25012-010 Cover, Speedometer (see below, also fits these models). 1 N/A
14 461F0300 Washer Spring 3mm 3 bolt sets
15 220B0308 Screw Pan Head 3x8 (set of 3) 3
16 25024-006 Cover, Meter Bracket 1 N/A
17 25012-011 Cover, Tachometer 1 N/A
18 311B0800 Nut, 8mm 2 Hardware
19 461F0800 Washer Spring 8mm 2 Hardware
20 411B0800 Washer Plain 8mm 2 Hardware
21 92075-080 Damper Rubber 4 N/A
22 27005-086 Switch, Ignition 1 Kits
23 27008-069-51 Key Set, #751 1 N/A
23 27008-069-52 Key Set, #752 1 N/A
23 27008-069-53 Key Set, #753 1 N/A
23 27008-069-54 Key Set, #754 1 N/A
23 27008-069-55 Key Set, #755 1 N/A
23 27008-069-56 Key Set, #756 1 N/A
23 27008-069-57 Key Set, #757 1 N/A
23 27008-069-58 Key Set, #758 1 N/A
23 27008-069-59 Key Set, #759 1 N/A
23 27008-069-60 Key Set, #760 1 N/A
23 27008-069-86 Key Set, #786 1 N/A
23 27008-069-87 Key Set, #787 1 N/A
23 27008-069-88 Key Set, #788 1 N/A
23 27008-069-89 Key Set, #789 1 N/A
23 27008-069-90 Key Set, #790 (1 key) 1 N/A
23 27008-069-91 Key Set, #791 1 N/A
23 27008-069-92 Key Set, #792 1 N/A
23 27008-069-93 Key Set, #793 (1 key) 1 N/A
23 27008-069-94 Key Set, #794 1 N/A
23 27008-069-95 Key Set, #795 1 N/A
23 27008-1013 Key, Blank (replaces OEM) fits these models N/A
24 27019-003 Holder, Ignition Switch 1 see ignition switch below
Kits

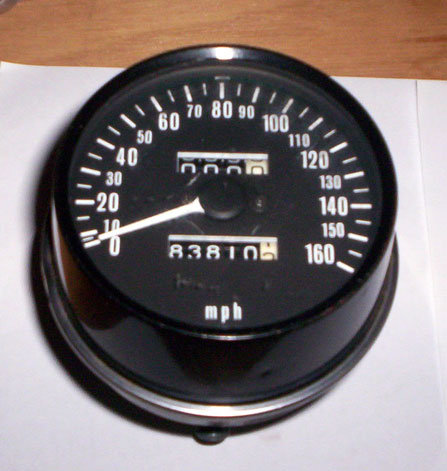

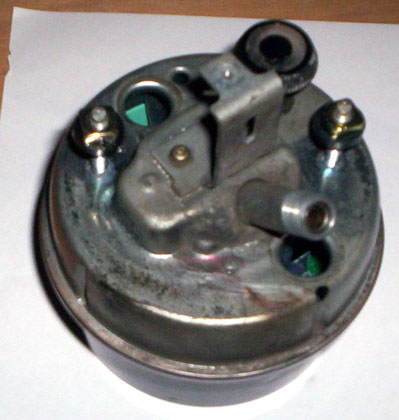

1 Replaces OEM # 25001-044 / 25005-121 / 25005-1031 / 25006-052 KZ900 Speedometer

Speedometer Assembly, 0-160MPH

For:
1977-1979 Kawasaki KZ1000B
1977-1979 KZ1000A
1977-1979 KZ650B
1977-1979 KZ650C
1978-1979 KZ650D
1976-1979 KZ750B
1976-1977 KZ900A
1976 KZ900B
1973-1975 Z1
1973-1975 Z1900 		$189.99
2 Replaces OEM # 25015-025 KZ900 Tachometer

Tachometer Assembly, 0-12000 RPM

For:
1976-1977 KZ900A
1976 KZ900B
1973-1975 Z1
1973-1975 Z1900

Includes a Stop Lamp warning light which lets you know when your brake light is burnt out.		 $189.99
5-10 25008-039
25008-045
25008-1005		 Bracket, Meter
1976 Kawasaki KZ900 Meter Bracket
Instrument cluster meter bracket for KZ900, KZ1000, KZ750, KZ650.
Fits Kawasaki models:
1977-81 KZ1000 A C G1,
1976-77 KZ900 A B,
1976-79 KZ750 B G1,
1977-80 KZ650 B D E F.
Hardware not included.		 $79.99
ignition switch

27008-1013
27019-003
27005-086
27005-083 ◄ Replaces OEM numbers.
KZ900 Ignition Switch with Key $34.99

This is a 4-prong connector block, not 6-prong. Fits the following Kawasaki models:
1978 Kawasaki KZ1000A
1977 Kawasaki KZ1000A
1980 Kawasaki KZ1000A MKII
1979 Kawasaki KZ1000A MKII
1980 Kawasaki KZ1000B Ltd
1979 Kawasaki KZ1000B Ltd
1978 Kawasaki KZ1000B Ltd
1977 Kawasaki KZ1000B Ltd
1981 Kawasaki KZ1000C Police
1980 Kawasaki KZ1000C Police
1979 Kawasaki KZ1000C Police
1978 Kawasaki KZ1000C Police
1980 Kawasaki KZ1000D Z1R
1978 Kawasaki KZ1000D Z1R
1979 Kawasaki KZ650B
1978 Kawasaki KZ650B
1977 Kawasaki KZ650B
1979 Kawasaki KZ650C Custom
1978 Kawasaki KZ650C Custom
1977 Kawasaki KZ650C Custom
1979 Kawasaki KZ650D SR
1978 Kawasaki KZ650D SR
1980 Kawasaki KZ650E Ltd
1980 Kawasaki KZ650F
1979 Kawasaki KZ750B
1978 Kawasaki KZ750B
1977 Kawasaki KZ750B
1976 Kawasaki KZ750B
1980 Kawasaki KZ750G Ltd
1976-77 Kawasaki KZ900A
1976-77 Kawasaki KZ900B LTD

Used
