Ref |
OEM |
Part Name |
Req |
Each
|
| 1 |
53001-119 |

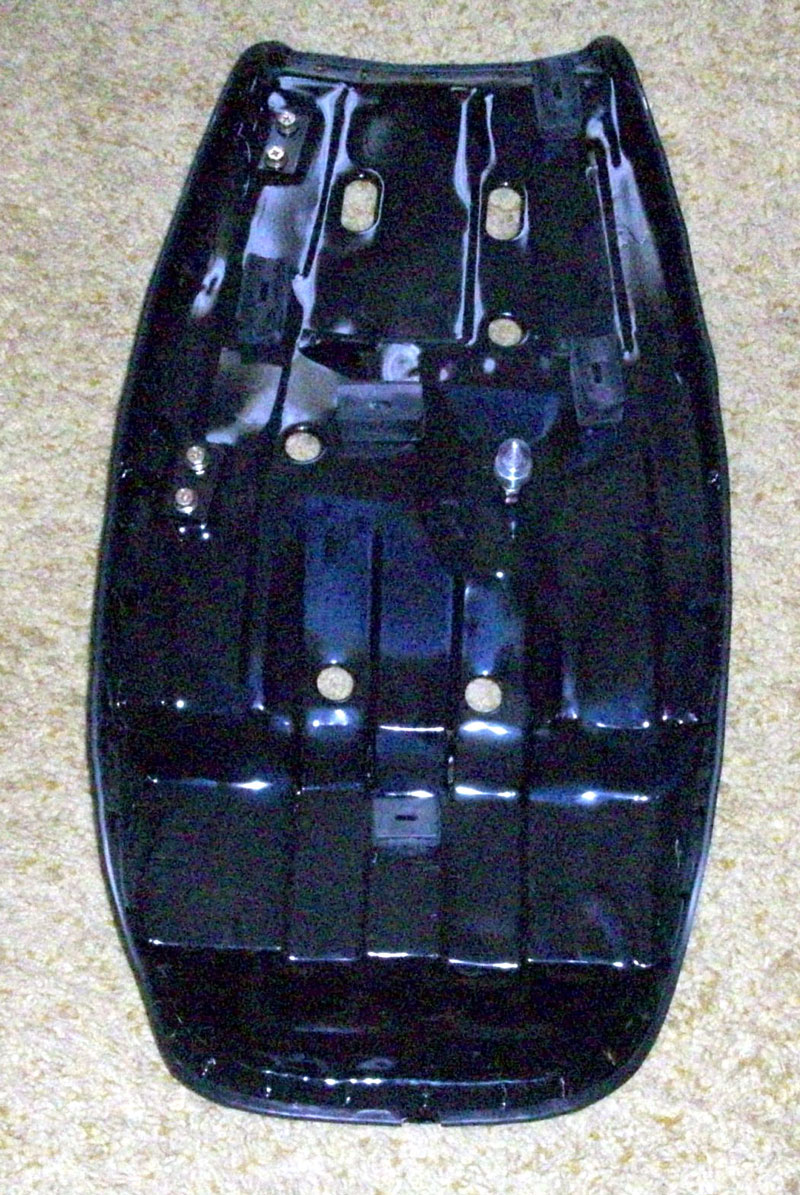

Seat-Assy, Dual and Z1 |
1 |
Kits |
| 2 |
53009-030 |
Hinge, Rear |
1 |
... |
|
3 |
411B0600 |
Washer Plain 6mm |
6 |
|
|
4 |
461F0600 |
WASHER SPRING 6MM |
6 |
|
|
5 |
112G0616 |
Bolt-Upset, 6x16 |
4 |
|
| 6 |
92075-139 |
Damper Rubber, Seat |
3 |
... |
| 7 |
53009-032 |
Hinge, Rear |
1 |
... |
| 8 |
92075-099 |
Damper Rubber |
1 |
... |
|
9 |
311B0600 |
Nut 6mm |
4 |
|
| 10 |
53058-003 |
Bracket, Seat Catch |
1 |
... |
| 11 |
53056-002 |
Catch, Seat |
1 |
... |
|
12 |
112B0614 |
Bolt-Upset 6x14 (112G0614) |
2 |
|
| 13 |
53011-008 |
Pin, Dual Seat Pivot |
2 |
... |
| 14 |
92041-003 |
Cotter Pin |
2 |
... |
| 15 |
27030-005 |
Lock, Seat |
1 |
... |
|
16 |
Keys |
See ignition switch |
|
... |
|
17 |
461F0600 |
Washer Spring 6mm |
1 |
|
|
18 |
112G0612 |
Bolt-Upset, 6x12 |
1 |
|
| 19 |
36014-061 |
Case-Chain
 |
1 |
N/A |
| 19 |
Chrome |
Case-Chain (Chrome Chain Guard) |
1 |
N/A |
|
20 |
92022-125 |
Washer 6.5x20x1.6t |
2 |
|
|
21 |
110N0618 |
Bolt Hex Head 6x18 |
2 |
|
|
22 |
92001-115 |
Bolt, Hex Head, 6x14 |
2 |
|
|
23 |
92022-1561 |
Washer, 8.5x20x1.6 |
2 |
|
|
Kits |
| |
|
Used
|
|
|
|
|
| |
|
