| Ref |
OEM Number
Part Name * Parts Required
|
| 1 |
46076-049
Lever Assembly, Clutch (46076-054) *
1
Kits |
| 2 |
46092-023
Lever, Clutch. Also fits H1, Z1, KZ900, KZ1000
fits these models. *
1
|
| 3 |
92007-047
Bolt, Hex Head *
1 |
| 4 |
46056-005
Nut-Lock *
1 |
| 5 |
46055-003
Screw Cable Adjust *
1 |
| 6 |
46094-017
Holder, Clutch Lever *
1 |
| 7 |
92017-014
Nut, Lock 6mm *
1 |
| 8 |
411B0600
Washer Plain 6mm *
1
bolt sets |
| 9 |
112B0622
Bolt 6x22 (112G0622) *
1 |
| 10 |
92001-1405
Bolt 8x40 *
4 |
| 11 |
461F0800
Washer Spring 8mm *
4
bolt sets |
| 12 |
46012-008
Holder - Handlebar *
2 |
| 13 |
46003-029
Handlebar *
1 |
| 14 |
46075-028
Rubber, L.H Grip *
1
Kits |
| 15 |
46091-1079
Housing Assembly, Cont, L.H (fits) *
1
Kits |
| 16 |
221B0308A
Screw Counter-Sunk Hd 3x8 *
1 |
| 17 |
46044-013
Knob, Lighting Switch LH *
1 |
| 18 |
220B0305A
Screw Pan Head 3x5 (92009-1123) *
2 |
| 19 |
46043-005
Knob, Lighting Switch LH *
1 |
| 20 |
46028-006
Button, Horn Push *
1 (See
Ref #32) |
| 21 |
220B0530
Screw Pan Head 5x30 (switch mount screws) *
2
Kits |
| 22 |
220B0535
Screw-Pan-Cross *
2
bolt sets |

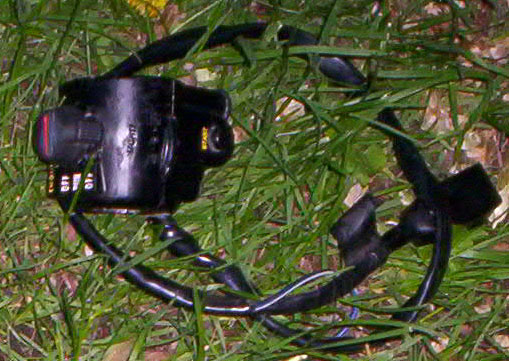

| 23 |
46091-1033
Housing Assembly, RH Cont (fits) *
1
Kits |
| 23 |
46091-1039
Housing Assembly, RH Canada *
1 |
| 24 |
46019-038
Grip Assembly, Throttle *
1 |
| 25 |
46043-004
Knob, Lighting Switch RH US *
1 |
| 26 |
27010-1009
Switch Assy, Horn Button *
1 |
| 27 |
27010-1009
Switch Assy, Horn Button (See Ref #32) *
1 |
| 28 |
27010-1009
Switch Assy, Horn Button *
1 |
| 29 |
56001-1030
Rear View Mirror (1 mirror fits left or right side) *
2
Kits |

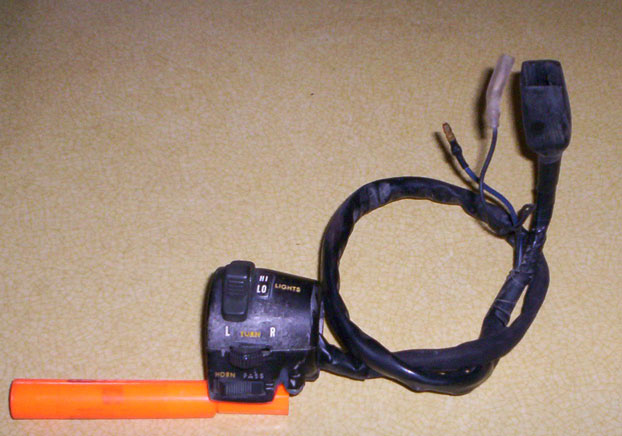

| 30 |
46089-014
Switch, LH *
1
Kits |
| 32 |
27010-1009
Switch Assembly, Starter Button
Includes Ref #26-28 * 1
|
