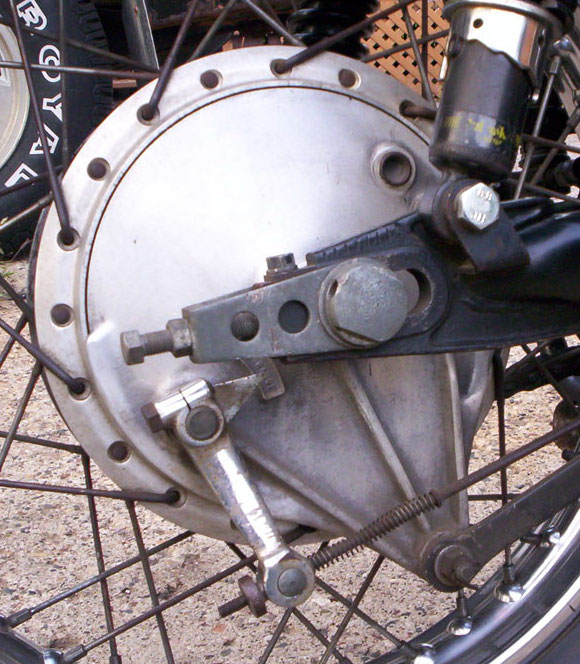

Rear Hub - Brake - Chain

1976-77 Kawasaki KZ900 A4 / A5

Back to Contents

Kits | Used

See parts list below

Ref OEM Part Name Req

Each

1 550D4035 Pin-Cotter, 4.0x35 1
2 42045-018 Nut Castle, 18mm 1
3 92022-248 Washer, Plain, 20mm 0
3 92022-249 Washer, Plain, 20mm 0
4 42041-118 Rear Sprocket 35t 1 Kits
5 42008-029 Coupling Assy, Rear Hub 1
5 42008-013 Coupling Assy, Rear Brake 0
6 42045-005 Nut 10mm 6
7 92088-013 Washer-Lock 3
8 42037-023 Collar, Rr Hub Coupling 1
9 92050-027 Oil Seal 1 Kits
10 601B6206 Ball Bearing, #6206 1 Kits
11 42036-015 Sleeve, Rear Hub Coupling 1
12 92003-087 Bolt-Rear Sprocket 6
13 42005-030 Drum Assy, Rear Brake 1
14 42014-021 Shock Damper (set of 6, not OEM) 6
15 601B6304 Bearing Ball #6304 1 Kits
16 42010-021 Spacer-Rear Hub Bearing 1 Kits
17 601B6304Z Ball Bearing, #6304z 1 Kits
18 42006-062 Panel-Assy, Rear Brake 1
Brake - Master Cylinder Rebuild Kit, Rear for the following models: 77-79 KZ1000 A1-A3A B1-B3 C1-C2 D1 E1. This kit will NOT work with the 1980 KZ1000 rear master cylinders, these are the master cylinders with a separate reservoir. OEM numbers: 43072-004, 43018-002, 43019-002, 43024-003, 43022-002, 43058-004 1 Not available
19 550D3025 Pin Cotter 3.0x25 2
20 41048-016 Shoe, Brake (replaces 41048-1092) 2
21 41049-012 Spring, Brake Shoe 1 Brakes
22 41045-006 Washer-Brake Shoe 1
23 41050-017 Cam Shaft, Brake 1
24 41051-003 Dust Shield-Brake Cam 1
25 41085-004 Indicator, Brake Shoe 1
26 115G0825 Bolt-Small-Upset 8x25 1
27 42029-033 Lever, Rear Brake Cam 1
28 42032-037 Collar, Rear Axle 1
29 42031-034 Axle, Rear 1
30 92057-107 Drive Chain 630x92 1 Kits
31 92026-108 Spacer, Rear Hub Use With 42008-013 1


Kits

Go here for more BRAKE parts


630 Chain - EK 92 link O-Ring $199.99
630 x 92
#630 chain
92 links

Fits:
1973-75 Kawasaki Z1
1976-77 Kawasaki KZ900
1977-81 Kawasaki KZ1000 A/B/C/D/G models and other motorcycles. O-Ring style chain by EK for Kawasaki. Size is 630 x 92 link. 630x92 chain fits these models. Comes with master link. 10,120 tensile strength. Not sold outside the USA.





630 Chain - EK 92 link non O-ring
$159.99

Stronger & lighter than the O-Ring chain, 7,000 tensile strength. 630x92 chain fits these models. Comes with master link.

Not sold outside the USA.


Front & Rear Stock Sprocket Set $79.99
Front (15 tooth) & Rear Sprocket (35 tooth). All steel for strength, not made of steel alloy.

35 tooth sprocket fits: 73-75 Z1, 76-77 KZ900 A4/A5 models only.

15 tooth sprocket fits: 73-75 Z1, 76-77 KZ900 A4 A5 B1, 78-81 KZ1000 C & G1.

Not sold outside the USA.


Sprocket 630 15T Front Countershaft Sprocket stock front sprocket. Z1 KZ900 KZ1000.

replaces 13144-062

Not sold outside the USA.

$37.99
Sprocket 630 35T Rear Wheel Sprocket $43.99
stock rear sprocket. Z1 KZ900 A4/A5.

replaces 42041-118

Not sold outside the USA.
