1976 Kawasaki KZ900 A4/A5
 FRONT HUB
Go here for mounting hardware

Back to Contents
See parts list below
Ref OEM Part Name Req Price
1 41069-033 Collar, Front Axle 2 $20.75

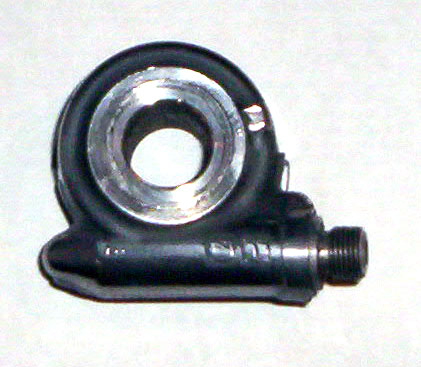

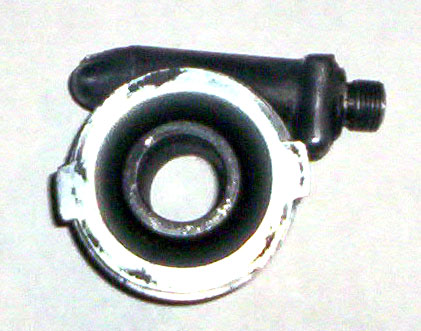

2 41078-008 Gear Box Assy 1 $88.20
3 41082-001 Pin, Spring 1 $1.95
4 41063-001 Washer Thrst Spd Pini 2 $2.32
5 41060-017 Pinion, Speedometer 1 $20.38
6 41062-005 Bush, Speedmeter Cable 1 $7.86
7 41059-026 Gear, Speedometer 1 $18.32
8 92049-1057 Oil Seal, Bjn30427-C3 1 $4.51
9 41064-013 Receiver, Gear 1 $9.89
10 41034-041 Drum-Assy, Fr Brk 1 $174.34
11 92001-158 Bolt 4 $2.55
12 92088-023 Washer, Lock 2 $3.52
13 41042-014 Dust Cover 1 $21.25
14 601B6203 Bearing Ball #6203 2 $7.58
15 41039-028 Collar, Brg 1 $24.99
16 92033-1040 Ring, Snap, 43.5m/M 1 $2.78
17 654A254008 Oil Seal 1 $11.60
18 41042-016 Dust Cover 1 $20.50
19 410B0500 Washer Plain 5mm 2 $1.95
20 220B0512 Screw Pan Head 5x12 2 $1.95
21 41069-032 Collar, Front Axle 1 $11.98
22 41068-049 Axle, Front 1 $58.85
