| Ref |
OEM |
Part Name |
Req |
Each |
| 1 |
35003-015 |
Fender-Front
Also fits: 73-75 Z1, 76-77 KZ900 A4 A5, 77-80 KZ1000
A1 A2 A2A A3 A3A A4. |
1 |
|
| 2 |
115G0816 |
Bolt-Small-Upset, 8x16 |
4 |
Kits |
| 3 |
461F0800 |
Washer Spring 8mm |
4 |
| 4 |
35022-137 |
Fender-Rear (black)
Also fits: 76-77 KZ900 A4 A5 B1. |
1 |
... |
| 5 |
35022-072 |
Fender-Rear (chrome)
Also fits:
73-75 Z1,
76-77 KZ900 A4 A5,
77-80 KZ1000 A1 A2 A2A A3 A3A
A4. |
1 |
... |
| 6 |
35026-006 |
Bracket, Rear Fender |
1 |
... |
| 7 |
92075-132 |
Damper Rubber, Rr Fend |
1 |
... |
| 8 |
112B0622 |
Bolt 6x22 (supercede: 112G0622) |
2 |
|
| 9 |
461F0600 |
Washer Spring 6mm |
4 |
|
| 10 |
92022-228 |
Washer, Plain, 7mm |
4 |
|
| 11 |
92075-174 |
Rubber, Fender Cover |
4 |
|
| 12 |
92027-162 |
Collar, Rear Fender |
4 |
|
| 13 |
92075-175 |
Damper Rubber |
4 |
|
| 14 |
92022-024 |
Washer Plain |
2 |
|
| 15 |
112G0616 |
Bolt-Upset, 6x16 |
4 |
|
| 16 |
411B0600 |
Washer Plain 6mm |
4 |
|
| 17 |
92071-019 |
Grommet Harness 10mm |
1 |
... |
| 18 |
35032-022 | Stay, Rear Fender (grab bar) |
1 |
Kits |
| 19 |
112B1022 |
Bolt-Upset, 10x22 |
2 |
|
| 20 |
461F1000 |
Washer Spring 10mm |
2 |
| 21 |
411B1000 |
Washer Plain 10mm |
2 |
| 22 |
92022-044 |
Washer-Pl-10.5x26x2.3 |
2 |
| 23 |
53043-013-3M
 |
Cover, Rear Fender, Green
Original colors are not available nor are the paint codes. |
1 |
N/A |
| 23 |
53043-013-3N |
Cover, Rr Fender, Brown |
1 |
N/A |
| 24 |
92027-162 |
COLLAR, REAR FENDER |
4 |
... |
| 25 |
92075-174 |
RUBBER, FENDER COVER |
2 |
... |
| 26 |
112G0625 |
BOLT-UPSET |
1 |
|
| 27 |
461F0600 |
WASHER SPRING 6MM |
2 |
|
| 28 |
92074-022 |
PLUG, BACKREST HOLE |
1 |
... |
| 29 |
92075-266 |
DAMPER RUBBER |
1 |
... |
| 30 |
32122-010 |
BRACKET, HELMET HOLDER |
2 |
... |
| 31 |
92075-175 |
DAMPER RUBBER |
... |
... |
| 32 |
32099-018 |
CASE |
... |
... |
| 33 |
92074-024 |
PLUG, CASE RUBBER |
... |
... |
| 34 |
92075-135 |
DAMPER RUBBER, Rear Fender |
... |
... |
| 35 |
112B0614 |
BOLT-UPSET 6X14 |
2 |
|
|
Kits |
Stay, Rear Fender (grab bar, grab rail)
35032-022
Add to Cart $119.99

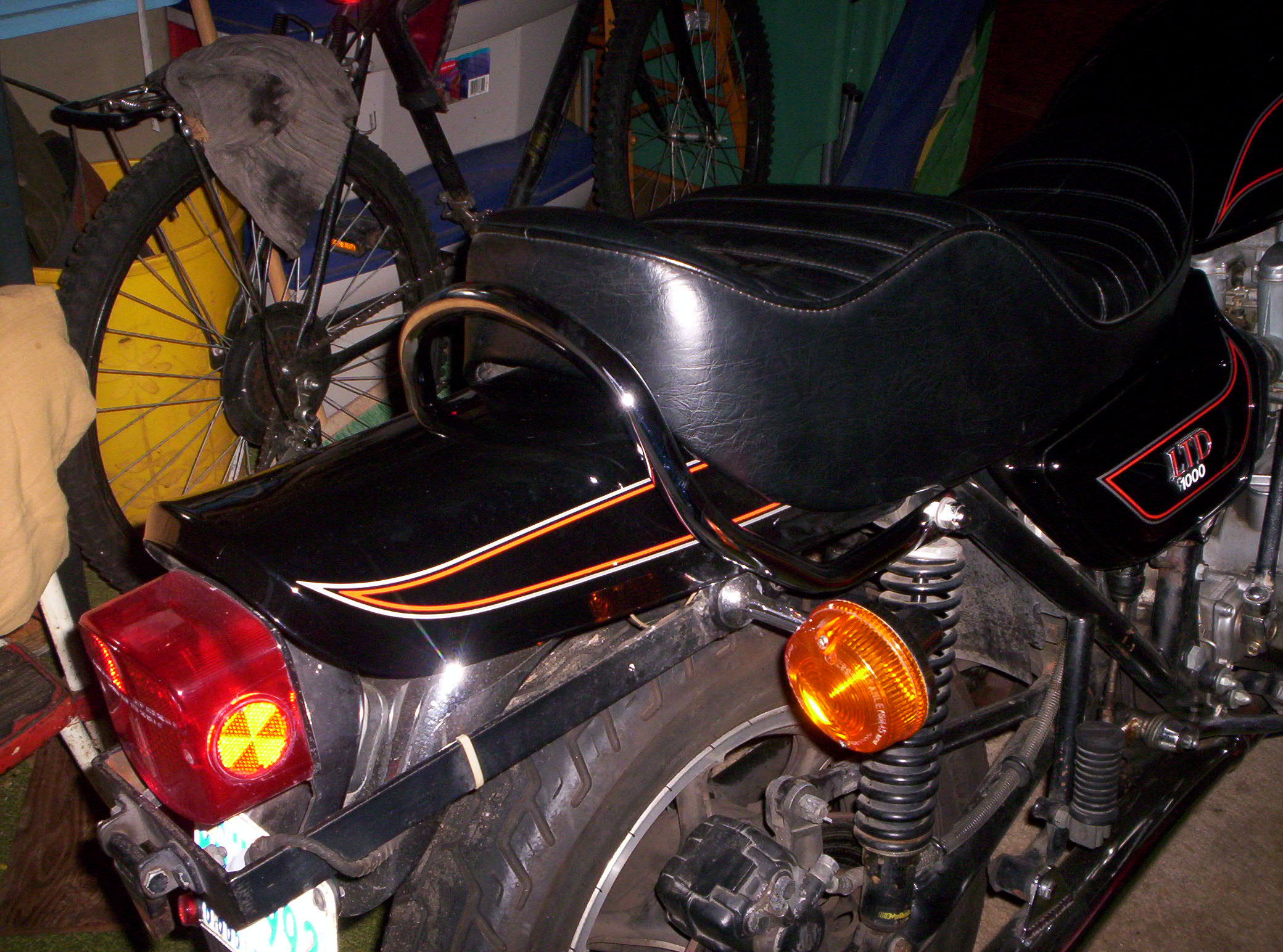

1976-77 KZ900 A4 A5. Also fits KZ1000 & Z1,
check photo for height
if installing on a KZ1000 or KZ900 LTD models. Will not fit MKII. Come with with hardware.
KZ1000 Grab Handle
N/A
Replaces OEM # 32109-1004 - Replacement for Kawasaki KZ1000-A3, KZ1000-A4,
KZ1000D. Also fits Z1 KZ900 and other KZ1000's up to 1980 (EXCEPT the Shaft
bikes - KZ1000E models).
COVER, REAR FENDER
53043-004 Unpainted. For 1973-75 Z1.
|
|
|
Used
|
|
 Used Chrome Luggage Rack SOLD
Fits: 1972-80 Kawasaki Z1, KZ900 & KZ1000.
 Used Chrome Luggage Rack SOLD
Fits: 1972-80 Kawasaki Z1, KZ900 & KZ1000.
|
|
