Ref |
OEM |
Part Name |
Req |
Each |
|
Also see 26mm or 28mm used
Carburetors,
Carb rebuild kits,
Carb Holders or
Z1/KZ carb settings
|
| |
not shown |
Accelerator Pump |
1 |
Kits |
| 1 |
16001-255 |
Carburetor Assy |
1 |
Used |
| 2 |
16001-268 |
Carburetor, L.H Outside |
1 |
|
| 3 |
16001-269 |
Carburetor, L.H Inside |
1 |
|
| 4 |
16001-270 |
Carburetor, R.H Inside |
1 |
|
| 5 |
16001-271 |
Carburetor, R.H Outside |
1 |
|
| 6 |
16057-002 |
Seat, Spring |
8 |
|
| 7 |
16065-017 |
Holder, Throttle Shaft |
4 |
|
| 8 |
16040-004 |
Spring, A |
4 |
|
| 9 |
16067-008 |
Pin |
4 |
|
| 10 |
16054-003 |
Washer, Lock, A |
4 |
|
| 11 |
16052-003 |
Shaft, Throttle Valve |
4 |
|
| 12 |
16033-027 |
Screw, Float Chamber Fitt (223B0412) |
8 |
|
| 13 |
461F0400 |
Washer Spring 4mm |
36 |
hardware |
| 14 |
16007-018 |
Plate, Throttle Valve |
4 |
|
| 15 |
16008-010 |
Circlip |
4 |
|
| 16 |
16009-071 |
Jet Needle, 5dl3 |
4 |
$9.99 |
| 17 |
16025-075 |
Valve, Throttle Cal, 5 |
4 |
|
| 18 |
16039-042 |
Cap, Rubber |
2 |
$29.99 |
| 19 |
223B0414 |
Screw-Pan-Ws-Cros |
12 |
Kits |
| 20 |
16033-009 |
Screw Float Chamber |
16 |
Kits |
21
|
16005-027 |
Top, Mixing Chamber (2
available)
|
4 |
$14.99 |
22
|
16019-031 |
Gasket, Chamber Top
 |
4 |
$4.99 |
| 23 |
16003-013 |
Nut, 5mm |
4 |
hardware |
| 24 |
16033-025 |
Screw, Lever |
4 |
|
| 25 |
16067-009 |
Bolt, 4x16 |
4 |
hardware |
| 26 |
16040-021 |
Spring, Lever |
4 |
|
| 27 |
16067-006 |
Bolt, Hex Head, 5x14 |
5 |
hardware |
| 28 |
461F0500 |
Washer Spring 5mm |
7 |
hardware |
| 29 |
16054-008 |
Washer, Plate |
4 |
|
| 30 |
16068-013 |
Lever, Throttle |
4 |
|
| 31 |
16068-012 |
Lever |
4 |
|
| 32 |
16014-1004 |
Screw, Pilot Adjusting |
4 |
|
| 33 |
16038-022 |
"O" Ring |
4 |
|
| 34 |
16022-007 |
Spring-Throttle Stop Screw |
4 |
|
| 35 |
16076-003 |
Circlip |
4 |
|
| 36 |
16073-014 |
Collar |
4 |
|
| 37 |
16039-015 |
Cap, Starter Plunger |
4 |
|
| 38 |
16012-015 |
Cap, Starter Plunger |
4 |
|
| 39 |
670B1509 |
"O" Ring, 9mm |
4 |
|
| 40 |
16013-008 |
Spring, Starter Plug |
4 |
|
| 41 |
16016-017 |
Plunger, Starter |
4 |
|
| 42 |
16029-004 |
Washer Float Valve Seat |
4 |
|
43
|
16030-027 |
 Float Valve
Assy |
4 |
$19.99 |
44
|
92064-042 |
 Pilot
Jet, #17.5 |
4 |
$17.99 |
| 45 |
16017-093 |
Needle Jet, 0-6 |
4 |
N/A |
| 46 |
16047-004 |
Holder, Needle Jet |
4 |
|
| 47 |
92063-076 |
Jet-Main No 115r Std (92063-1109) |
4 |
$4.99 |
| 47 |
92063-1038 |
Main Jet, #110r |
4 |
$4.99 |
47
|
92063-075 |
 Jet-Main No
112.5r (92063-1110) |
4 |
$4.99 |
| 47 |
92063-077 |
Jet-Main No 117.5r |
4 |
$4.99 |
| 47 |
92063-078 |
Main Jet No 120r (92063-1106) |
4 |
$4.99 |
| |
|
^^^ Other Main Jets available ^^^ |
|
|
| 48 |
16031-031 |
Float |
4 |
|
| 49 |
16032-003 |
Float Pin (16032-008) |
4 |
|
| 50 |
11009-1563 |
Gasket, Float Chamber |
4 |
$4.99 |
| 51 |
16049-005 |
Cover, Main Jet |
4 |
$19.99 |
| 51 |
16049-005 |
Cover, Main Jet USED |
4 |
$9.99 |
| 52 |
16038-016 |
"0" Ring, Main Jet Cov |
4 |
|
| 53 |
16046-005 |
Screw |
1 |
|
| 54 |
16040-009 |
Spring, F |
1 |
|
| 55 |
16039-020 |
Washer, Plain |
1 |
hardware |
| 56 |
16039-019 |
Washer, Plain |
1 |
hardware |
| 57 |
16041-016 |
Shaft, Starter Plunger |
1 |
|
| 58 |
16046-007 |
Screw, Pan Head, 5x7 |
4 |
hardware |
| 59 |
13168-1026 |
Lever, Starter Plunger |
4 |
|
| 60 |
16065-040 |
Plate, Carb Connection |
1 |
|
| 61 |
16041-017 |
Shaft, Carb Connection |
1 |
|
| 62 |
16033-016 |
Screw, Pan Head, 5x14 |
2 |
hardware |
| 63 |
461F0500 |
Washer Spring, 5mm |
|
hardware |
| 64 |
16055-012 |
Plate, Shaft Stopper |
1 |
|
| 65 |
16077-014 |
Bracket, Cable Pully |
1 |
|
| 66 |
16040-022 |
Spring, Cable Pully |
1 |
|
| 67 |
16065-039 |
Holder, Carb Mounting |
1 |
|
| 68 |
16022-010 |
Spring, Throttle Adjst |
1 |
|
| 69 |
16021-020 |
Adjuster, Throttle Lever |
1 |
|
| 70 |
16077-012 |
Bracket, Cable Pulley |
1 |
|
| 71 |
16033-016 |
Screw, PanHead, 5x14 |
|
hardware |
| 72 |
16040-020 |
Spring, Cable Pulley |
1 |
|
| 73 |
16068-011 |
Pully, Throttle Cable |
1 |
|
| 74 |
16077-013 |
Holder, Throttle Screw |
1 |
|
| 75 |
464H0500 |
Washer Lock 5mm |
1 |
hardware |
| 76 |
16022-009 |
Spring, Thr Stop Screw |
1 |
|
| 77 |
16021-028 |
Screw, Throttle Stop |
1 |
|
| 78 |
92037-072 |
Clamp-Pipe |
4 |
|
| 79 |
92059-144 |
Hose, Fuel |
1 |
|
| 80 |
16046-002 |
Joint, Fuel Pipe |
2 |
$21.99 |
| 81 |
16033-029 |
Screw, 6x14 |
8 |
hardware |
| 82 |
92059-085 |
Pipe, Over Flow |
1 |
|
| 83 |
92037-173 |
Clamp, Overflow Hose |
4 |
|
| 84 |
92059-134 |
Hose, Fuel Overflow (92059-147) |
4 |
|
| 85 |
92037-174 |
Clamp, Breather Hose (92037-1610) |
2 |
|
| 86 |
92059-135 |
Hose, Breather |
2 |
|
| 87 |
92071-102 |
Grommet, Carb (only
2 available) |
6 |
$29.99 |
|
Kits
|
|
Ref |
OEM |
Part Name |
Req |
Each |
| |
|
Accelerator
Pump Kit KZ1000 A3 A4 B3 B4 C2 C3 C4 D3 Z1R E1/E2 Shaft & ST MKII. Our
part # 20-4019. |
1
|
$29.99
|
| |
 Air Filter
Pod
Fits: 26mm - 29mm carburetors, Z1 KZ900 KZ1000. Four filters required for 4 cylinders.
|
4 |
$12.99 |
Carburetor (Mikuni) Float Bowl - 12pc Phillips Screw
Kit
$7.99 220B0416
Replace those rusted, missing or stripped screws for Mikuni 26mm thru 29mm carburetors.
Z1 KZ900 & KZ1000 models from 1973-1980. |
|
Carburetor (Mikuni) Top, Mixing Chamber (cover) - 12pc Phillips Screw
Kit 220B0416
$5.99
Replace those rusted/missing screws. Z1 KZ900 &
KZ1000 models from 1973-1980.
|
|
Normally, carburetor jets
are not needed unless they are worn. The air screw jet normally wears the quickest.
If gas is leaking out of the float bowls: you may either need new bowl gaskets
or a float needle & seat (Float Valve Assy) see REF# 43 above or your float level
needs adjustment. To clean the small holes in these jets, use the wire from a twist-tie.
|
Carburetor
(Mikuni) Rebuild Kits with jets
Includes: Float Bowl Gasket, O-Rings, Carburetor top gasket, Float needle & Seat,
Main Jet, Pilot Jet, Adjustment screw, & Spring. For Mikuni VM26SS carburetors.
1976-77 KZ900 A B, 77-78 KZ1000 B1 B2. |
4
|
$23.99
each
|
| |
48-1415
|
Carb Rebuild Kit (Mikuni) w/o jets
Includes: Float Bowl Gasket, O-Rings, Top Cover Gasket, Float needle & Seat.
76-77 KZ900 A4 A5 B1
77-78 KZ1000 A1 A2
77-78 KZ1000 B1 B2 LTD
4 kits are required to rebuild four Mikuni VM26SS carburetors.
|
4 |
$19.99
|
| |
48-1421 |
Carburetor Rebuild Kit (Mikuni 28mm) w/jets
for Kawasaki 73-75 Z1 A/B. Includes: Float Bowl Gasket, O-Rings, Carb
top gasket, Float needle & Seat, Main Jet, Pilot Jet, Adjustment screw, Spring &
Needle. 4 kits are required to rebuild four Mikuni VM28 carburetors.
|
4 |
$23.99
each |
| |
48-1416 |
Carb Rebuild Kit (Mikuni) w/o jets
Includes Float Bowl Gasket, O-Rings, Carb top gasket, Float needle
& Seat.
79-80 KZ1000 A3/A4,
79-80 KZ1000 B3/B4 LTD,
80-81 KZ1000 C3/C4, Police,
1980 KZ1000 D3 Z1R. Four kits required to rebuild four carburetors.
|
4 |
$22.99 |
|
 |
Carburetor Rebuild Kit for 34mm Mikuni
for 1981-1983 KZ1000. Four kits required to rebuild four carburetors.
|
4 |
$24.99 |
|
Used |
|

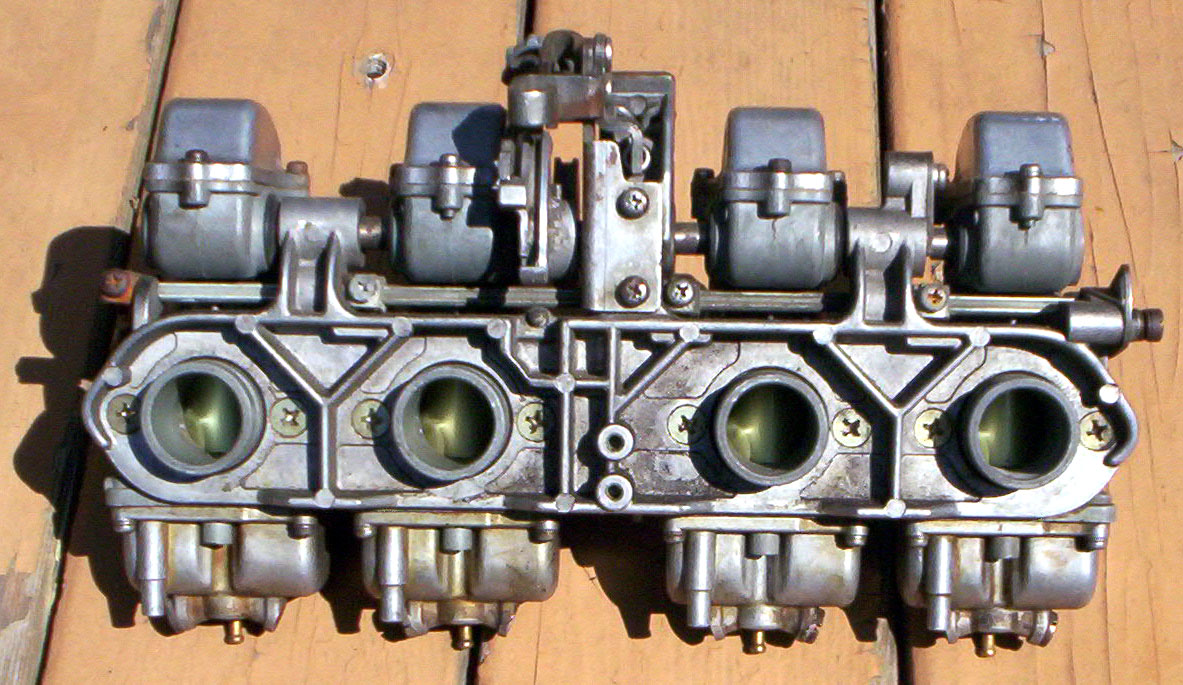

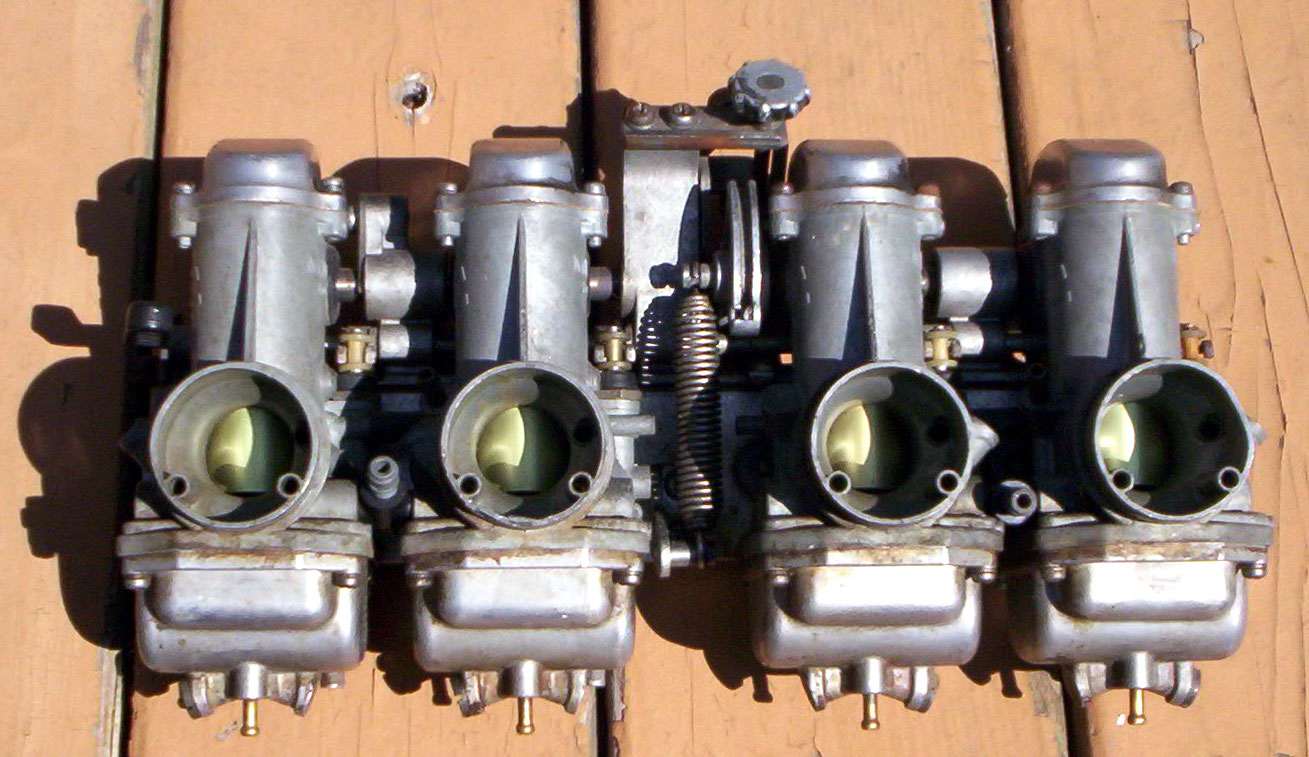

Mikuni VM26SS Carburetors, Complete Rack of
Used
<click to zoom>
Used set of 26mm Mikuni OEM carbs from a running KZ900 A5. See photos
for details. These are stock carburetors for 76-77 KZ900 A4, A5 & B1 models. Will
fit these models without any modifications, 73-78 Kawasaki Z1, KZ900
& KZ1000 models.
|
1 |
$229.99
not in stock |
| |
Mikuni VM28 Carburetors, Complete rack of
Used
Mikuni VM28, 28mm carburetors from a 1978 Kawasaki KZ1000 D Z1R. Fits these
Kawasaki models without any modifications, 73-78 Kawasaki Z1, KZ900 & KZ1000
models. Also see, Photo2 &
Photo3.
|
1 |
$249.99
|
| |

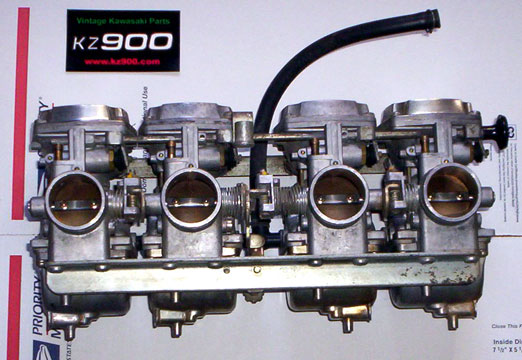

Mikuni 34mm BS34 Carburetors, Complete Rack of Used
For 1981-83 KZ1000 J thru R & KZ1100 A B D models. Removed from
a running 1981 KZ1000. In very nice condition.
|
1 |
$289.99
not in stock |
| |
|
