1976-77 Kawasaki KZ900 A4/A5

AIR CLEANER/MUFFLERS

Back to Contents

Kits | Used

Ref OEM Part Name Req Each
1 220B0535 Screw-Pan-Cros 4
2 92037-061 Clamp-Inlet Pipe 4
3 14073-1022
Air Cleaner Ducts, Set of 4
Kawasaki KZ900 KZ1000 (4 rubber air ducts that connect between the air box and carburetors, sold as set of 4).
Duct, Air Cleaner, #1
1 $99.99
4 14073-1023 Duct, Air Cleaner, #2, #3 2
5 14073-1024 Duct, Air Cleaner, #4 1
6 220B0416 Screw Pan Head (set of 8 stainless-steel) 8 $3.99
7 410B0400 Washer Plain 4mm (set of 8 stainless-steel) 8 $ .99
8 11040-001 Plate, Carburetor Hold 1 N/A
9 11040-003 Plate, Carburetor Hold 1 N/A
10 11040-002 Plate, Carburetor Hold 1 N/A
11 11012-070 Cap, Air Cleaner Body 1
12 11013-058 Element, Air Cleaner KZ900 & KZ1000 1 Kits
13 11011-054 Body, Air Cleaner 1
14 92037-106 Clamp 1
15 11016-008 Silencer 1 N/A
16 220B0550A Screw-Pan Head, 5x50 1
17 11012-1083 Cap, Drain 2
18 92059-124 Tube, Drain 1
19 92037-028 Clamp Breather Pipe 1
    Parts REF# 8-19 are obsolete, except for # 12.
20 92017-014 Nut, 6mm (set of 8) 8 bolt sets
20   Nut, 8mm (set of 8) for KZ1000 models 8 bolt sets
21 18069-045 Holder, Exhaust Pipe (set of 4) 4 $89.99
22 92027-170 Insert, Exhaust Pipe 8 Kits
23 11009-1906 Gasket, Exhaust Pipe Header 32mm x 42mm x 3.0mm. Fits Kawasaki KZ1000, KZ1100, KZ900, Z1, ZN1100, ZX1100. 4 $4.99
23 Replaces 14181-05020 / 14181-18C00 Gasket, Exhaust Pipe Header (32mm x 42mm x 5.0mm, fiber) Also fits: Suzuki GN125Z/D/EM, DR250SEP/SER/SES, GS250TT/TX, GS300LZ/LD/LF, DR350SER/S/T/V/W/X, GS550ED/ESD/ES3/ESE/EF/ESF/ESG/LD/LF/LG, GSX600FJ/FK/FL/FM, GS650EX/EZ/GX/GLX/GZ/GLZ/GD/GLD/MD, XN85D, GS700EF/ESF, GS750ED/ESD, GSX-R750G/H/RG, GSX-R1100G/H/J. 4 $3.99
24 18001-230 Muffler Assy, R.H Upper 1
25 18001-229 Muffler Assy, R.H Lower 1
26 18069-046 Holder, Exhaust Pipe 2
27 18001-228 Muffler Assy, L.H Lower 1
28 92019-021 Lock Nut, 10mm (92015-1962) 2
29 220B0616 Screw Pan Head 6x16 2
30 92059-120 Pipe, Muffler Connect 2
31 92037-103 Clamp, Muffler Connect 2
32 18001-227 Muffler Assy, L.H Upper 1
33 92092-010 Bushing, Muffler Fitting 4
34 92003-180 Bolt, Hex Head, 10x104 2

Ref#

OEM#

Kits

Req

Each


Accelerator Pump Rebuild Kit, Kawasaki
KZ1000 A3 A4 B3 B4 C2 C3 C4 D3 Z1R E1 E2 Shaft ST MKII Police and
KZ650 B3 C3 D1 D2 E1 F1 H1.




11, 13


11011-022

Kawasaki Z1 air box (air cleaner body)
Air Cleaner Body, Airbox
Fits: 1973-75 Kawasaki Z1 900 models only.





Air Filter Pod, Chrome (airbox alternative)

Fits 26 - 29mm carburetors, Z1 KZ900 KZ1000. Chrome cone-shaped 42mm filters. One filter required per carburetor. Also fits:
77-80 KAWASAKI: KH400, KZ900, Z1, KZ1000
79-80 HONDA CB650
77-79 SUZUKI: GT380, GT550, GS750, 77-79 GS1000
YAMAHA: RD250, RD350, RD400

4

$12.99 each

12
11013-063


Air Filter Element, Stock

1976-81 KZ1000 A B C D1 D3 Z1R models. Also works with KZ900 air boxes.
1 $19.99 each
12 11013-058 Air Filter, Stock 76-77 KZ900 A4 A5 B1 1 N/A
  Carburetor Holders (intake manifolds or the part that goes between the carbs and the intake with vacuum plugs) see Cylinder-Head REF# 26, 27.
  BAF-1.375 Exhaust pipe baffle
Exhaust Baffle 1.375 inch O. D. (1-3/8"), 4 " long
1 per pipe $9.99 each
21 & 26 18069-046  18069-045


Exhaust Holders (Collars) Kit
Includes: All 4 exhaust holders, 8 Inserts and eight 6mm nuts and washers.
Fits: 73-75 Z1, 76-77 KZ900. Also fits some KZ1000 models but uses 8mm nuts.

set of 4



22   Exhaust Inserts (split collars), Set of 8, above 8 ^see above^
20 92017-014
Exhaust Nuts (Set of 8, 6mm Nuts for KZ900 or Z1). Or Exhaust Nuts (Set of 8, 8mm Nuts for KZ1000). set of 8 see bolt sets


Used

  11011-054

Air Cleaner Body (Air Box), Used
For 1976-77 KZ900 A4, A5 & B1, with lid, does not come with rubber air ducts or air filter element.

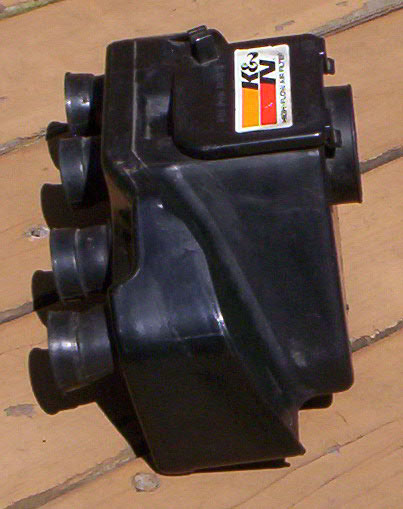

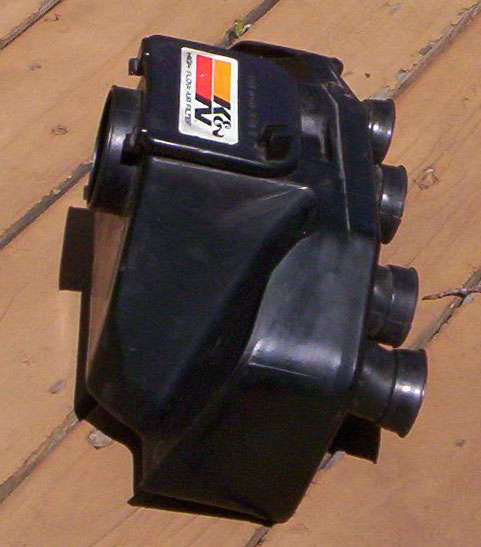

Used K&N Air Cleaner Element KZ900 / KZ1000 reuseable/cleanable-type. $34.99 each
Replaces: 11013-063
click to zoom 11016-0099

Silencer, Used For 77-80 KZ1000 A B C D (Z1R) & 81 KZ1000 C4. Very rare part.

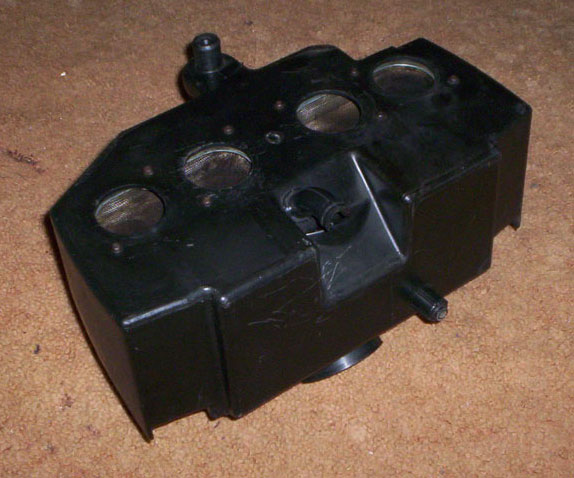

11011-1055
Air Cleaner Body, Used
For 1979-80 KZ1000 E1 / E2 & Shaft drive models. Photo1, Photo2, Photo3
